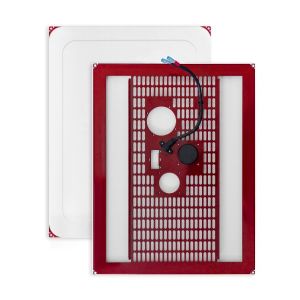

Amina MobiusDual i Stereo Plaster In-Wall Invisible Speaker
Amina MobiusDual i Stereo Plaster In-Wall Invisible Speaker
with FREE UK DELIVERY
Amina MobiusDual i provides a single-panel dual-channel solution for where there is insufficient space for a pair of loudspeakers, but stereo sound reproduction is still required. With two discrete inputs, the loudspeaker produces both left and right channels from the same panel. The updated ‘i’version features improved high frequency transducers, and a change in impedance from 8ohms per channel to 6ohms per channel.
Rendered invisible behind a 2mm skim of plaster, or other material such as solid wood, veneer or leather, it is the perfect solution for aesthetically sensitive applications where stereo image (width) is not critical but sound quality and even dispersion are still required.
Amina Tip:
While the MobiusDual i provides reproduction of both left and right stereo channels, there is minimal stereo separation or image. Another alternative to using a single-panel dual-channel speaker is to use a single mono speaker, fed by a mono-summed signal (mono-summing is usually done at source or within a preamp, audio matrix or processor).
Example Applications:
- Residential distributed audio solutions,
- commercial installations.
Compatible Accessories:
- BackboxCV345
- BackboxSW345
- Firehood345
- Mounting Blocks, Shim Kits, APUi30, APU-RS8i, APU-RS16i
- ALF40, ALF80, ALF120 Subwoofer.
Amina Warranty:
10 year manufacturer limited warranty (Installed by authorised Installers).
We are authorised Amina retailers. Brand new and complete with the full manufacturers warranty.
Nominal Impedance: 8 Ohms
Power Handling: 30W/60W
Sensitivity (with 2mm plaster skim):
84dB 1m/2.83Vrms
Frequency Response: 112Hz - 20kHz (-6db)
Useable Frequency Range: 80Hz - 23kHz (+/-10dB)
Electrical Connection:
Blue butt-splice crimp terminals (14-16 AWG)
Fixing Requirements:
Backbox CV300 / SW300 or Mounting blocks
In Line Protection unit APUi30C
Rack-Mount Protection Unit: APU-RS8iC or APU-RS16iC
Warranty: 10 Years (Auth Installer)
400mm x 300mm x 35mm
(153/4” x 1113/16” x 13/8”)
Product Weight
1.1kg (2lb 6oz)
