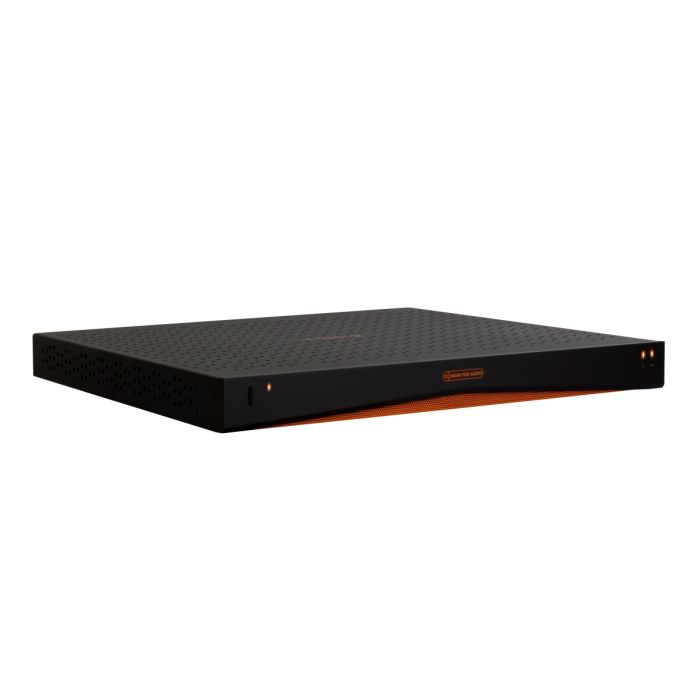

Monitor Audio IA150-2 Installation Amplifier
Monitor Audio Installation Amplifiers are built to do more and use less space. Our distribution amplifiers offer full connectivity with simple wired voltage trigger or signal sense.
The IA150-2 powers a stereo pair, with rear panel-located volume adjustment for each channel. Just 42 mm high, 438 mm wide, and 427 mm deep, the handsome 1U sized case houses world renowned Hypex amplifiers, selected by us to guarantee reliability and the great sound quality the world has come to expect from Monitor Audio.
Monitor Audio Warranty:
Monitor Audio Amplifiers carry a 5 Year Warranty
'Connect' IP Control
N/A
Channel Number
2 (1 Stereo Pair)
Power (W / Channel) | 4 ohms
150 W
Power (W / Channel) | 8 ohms
100 W
Power (W / Channel) | Bridge (8 ohms)
320 W (1CH)
Power (W / Channel) | 70V
N/A
Input Impedance
20 K ohms
Output Impedance (Loop RCA)
600 ohms
Input Sensitivity
100 mV / 1 W, 1000 mV – Full power
Maximum Input Voltage
2.9 V
Signal to Noise (SN:R)
-100 dB (20 Hz – 20 kHz)
Frequency Response
5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz
0.03%
Rack Height
1U
IP Communication
N/A
Mains Operating Voltage
100 – 120 V @ 60 Hz
220 – 240 V @ 50 Hz
Fuse Type
5 A (T5AL ~ 250VAC)
Standby Power Consumption
<0.5 W (green mode)
Networked Standby Power Consumption
N/A
Dimensions (Without Feet (H x W x D))
42.4 x 438 x 427 mm (111/16x 171/4 x 16 13/16")
Dimensions (With Feet (H x W x D))
52.8 x 438 x 427 mm (21/16x 171/4 x 1613/16")
Width (including rack brackets)
482 mm (19")
Weight
5.29 kg (11 lb 10 oz)
