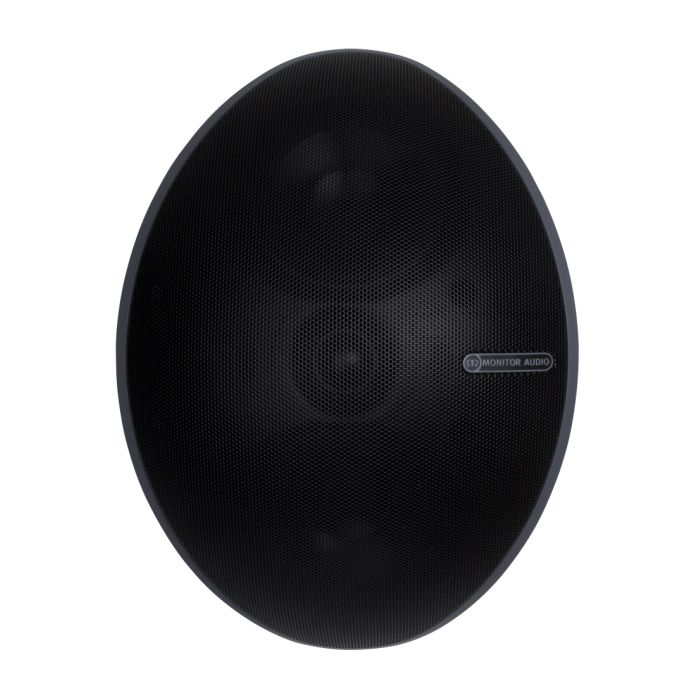

Monitor Audio Vecta V240-LV Line Level Indoor Outdoor Speaker
Monitor Audio Vecta V240-LV Line Level Speaker can be simply installed in places where other speaker choices would prove impractical. In both domestic and commercial locations, the speaker can be wall-mounted (horizontally or vertically) and discreetly installed under eaves or corner.
With an IP55 rating, the V240-LV is designed to withstand extreme environmental exposure and to deliver incredible audio quality for a lifetime. The compact form factor and unique design aesthetics ensure the speaker blends seamlessly into the background, providing architects and installers with a fresh choice for discreet internal and external audio applications.
Driver and System design: The dual 4" C-CAM metal cone drivers have been developed to be placed on a curved baffle and to deliver a controlled sound field that minimises ceiling or wall reflections, when mounted under eaves or in a corner. The centrally mounted C-CAM tweeter ensures dispersion at the crossover point matches the mid-range, providing smooth off-axis frequency response. The fully sealed box cabinet is resistant to air noise and the ingress of water and dirt.
Fitting: Once the bespoke bracket is installed and connected, the speaker simply drops into position and is secured with a single screw. This gives a precise electrical connection automatically and with no visible wires. The intelligent design makes it easier to install the speaker in the most difficult locations.
Please note: Brackets Sold Separately.
Features
- Stylish, compact, and versatile architectural ‘All-weather’ design
- Dual 4" Drivers featuring C-CAM metal cone technology
- 25 mm (1") C-CAM Dome tweeter
- Sealed enclosure impervious to ‘all weather’ environments – Rated to IP55
- Intelligent automatic connection system – easier to install with no visible wires.
- Straight wall mount bracket V-MOUNT – Providing 25 degrees tilt (optional wedge adds extra 32.5 degrees)
- Corner bracket V-CORNER for corner or under eave installation
- High-density ABS enclosure with rust proof grille
- Available in black or white
- Paintable to match a custom installation
Monitor Audio Warranty:
Monitor Audio Custom Install Speaker Series carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
System Format
2-way (3 driver)
Frequency Response (-6 dB)
70 Hz – 25 kHz
Sensitivity (1W@1M)
88 dB
Nominal Impedance
70/100 Volt line level
Minimum Impedance
N/A
Switch
70 V (2, 4, 8, 16, 32) power level
Maximum SPL
108 dBA (each)
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
25 – 100 W
Bass Alignment
Sealed cabinet
Crossover Frequency
2.5 kHz
Connection
Gold plated push terminals – attached to bracket
Environmental Protection Rating
IP55 -25° to 65° C
Bracket Pivot Angle
Wall: 25 degrees. Wedge: Additional 32.5. Total Max: 45.
4-point cluster bracket - vertical.
Drive Unit Complement
2 x 4" Drivers featuring C-CAM metal cone technology
25 mm (1") C-CAM dome tweeter
Finishes
Black or White (Signal White, RAL 9003)
Dimensions (H x W x D)
335.9 x 243.2 x 150 mm (131/4 x 99/16x 57/8")
Weight
3.56 kg (7 lb 14 oz)
